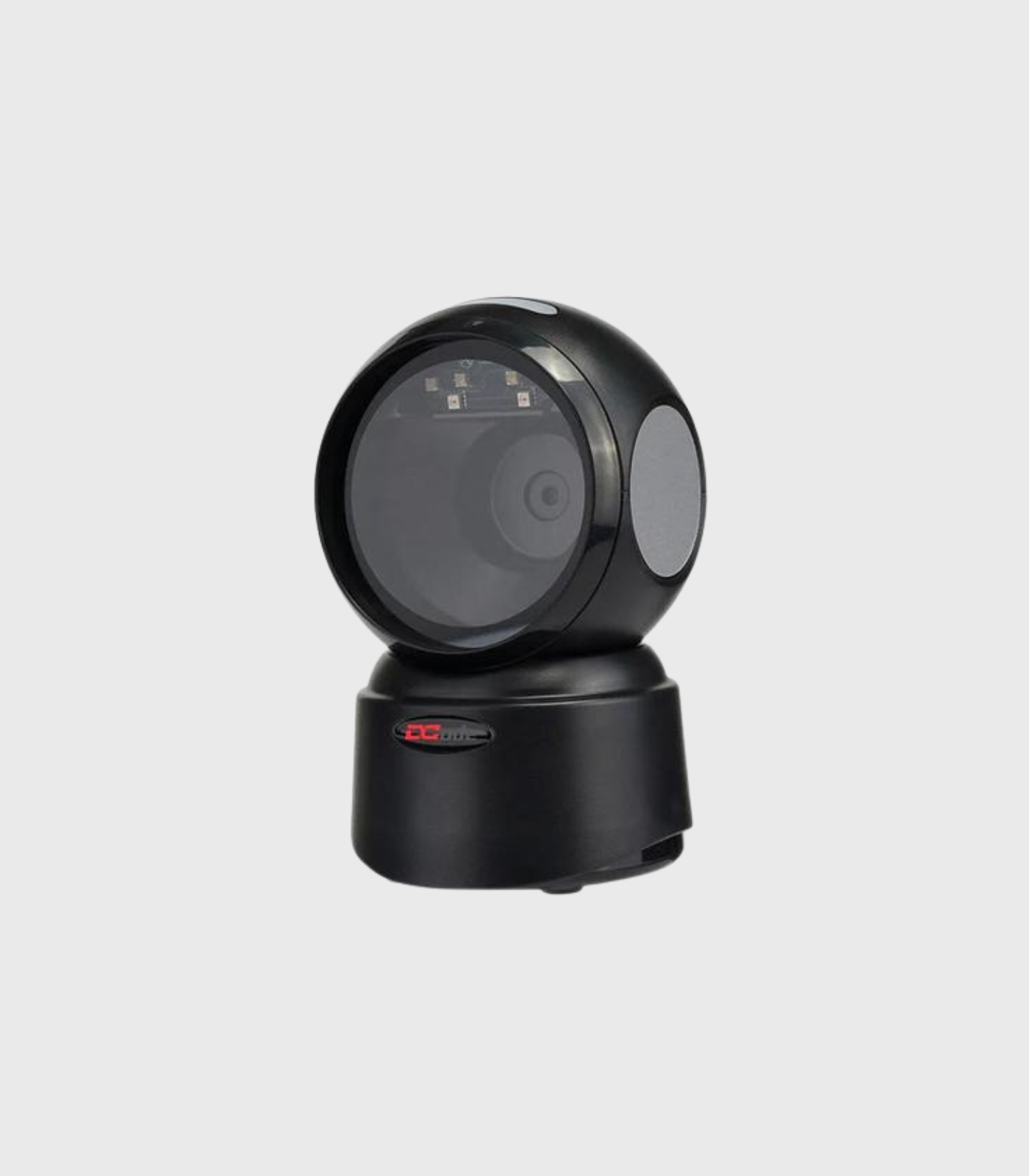

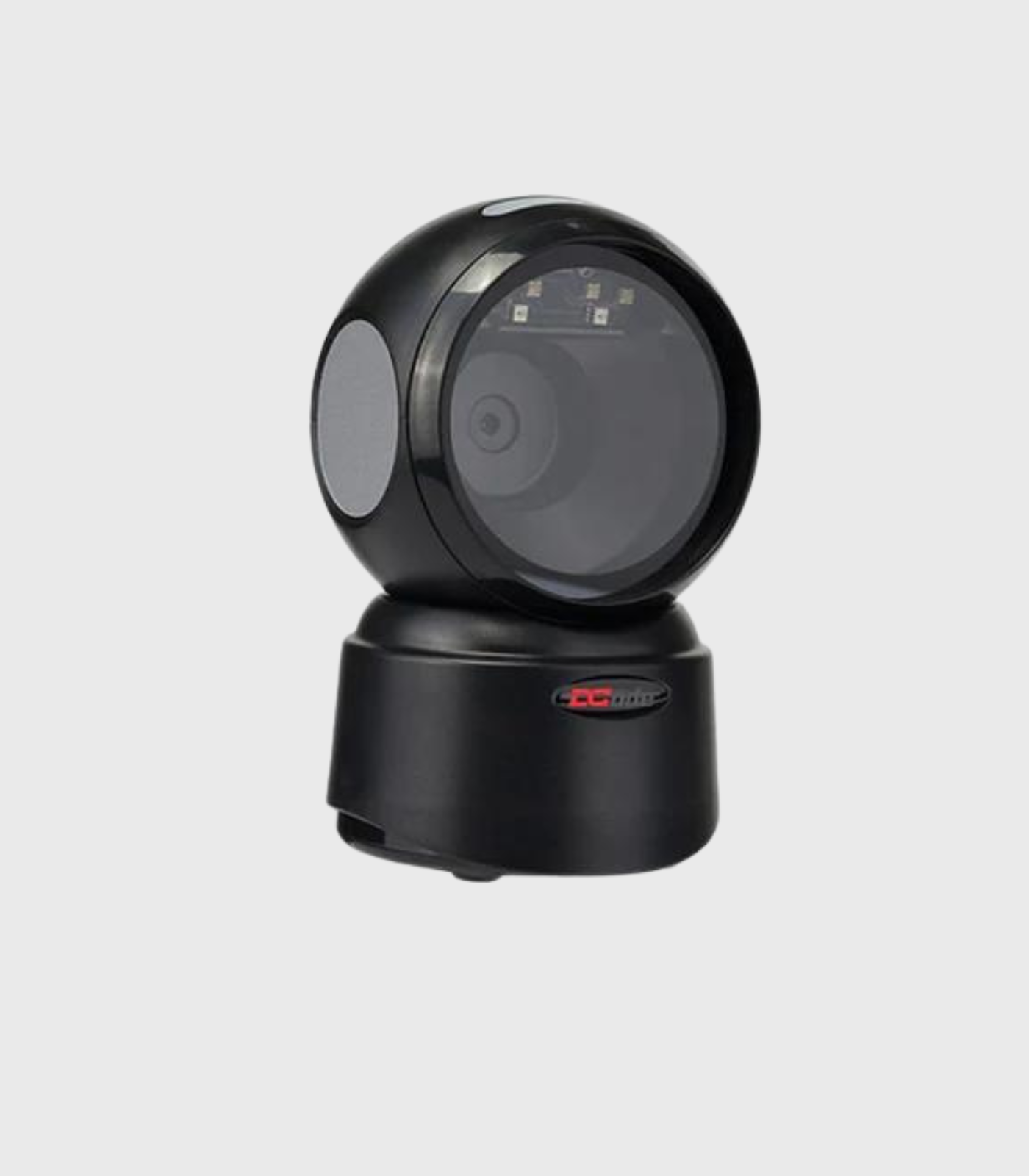

Dcode DC5132 Table Top Barcode Scanner (USB)
Dcode DC5132 Table Top Barcode Scanner (USB)

Dcode DC5132 Table Top Barcode Scanner (USB)

  • Model no. : DC5132
  • Scanning Type : Omni-directional
  • Connectivity Type : Wired(Corded)
  • Type of Opration : LED CCD Imager
  • Reading Range : 500 times/s

₹5,199.00 (Including GST & Shipping)

Wishlist Wishlist Wishlist
Category Tags, , , , , Brand:
Specification
Scanning typeDC-5132 2D Omni-directional
Optical resolution640*480
Lighting sourcered LED supplement
Scanning speed500 times/s
Scanning anglerotate Roll:0-360⁰, tilt pitch: ±65⁰, deflect SKEW: ±60⁰
Sweeping barcode typepaper, thin film medium one- dimensional; mobile phone, flat screen, etc.
Printing contrast20%
Error rate≤1/2,000,000
Interface type: USB:USB:HID KEYBOARD (default mode), USB virtual serial port
IP levelup to IP5X standard
Prompt modebuzzer sound prompt and green light prompt
Decode Capability1D- 1D:Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93,Code 11, Codabar/NW7, All UPC/EAN/JAN code (EAN-13,EAN- 8, UPC-A, UPC-E, EAN-128),

Interleave 2 of 5, STD 2of 5, Industrial 2 of 5, matrix 2 of 5, Chinese Postage Code,IATA, MSI/PLESSY, Italian Pharmacy Code, Industrial 2 of 5,BC-412



2D-QR Code, PDF417,Data Matrix
Electrical parameters
Electric voltage4.5~5.5V DC V1 ± 5%
Working currentMax 130mA ; Operating 80mA
Optical safety certificationICE4247* IEC60950
Electromagnetic compatibilityEn55022, EN55024
MECHANICAL PARAMETER
Size104mm*96.3mm*166mm
InterfaceUSB(Option RS-232)
Cable length150cm
Weight300g
Drop0.8m
Environment parameters
Working temperature-20°C~50°C
Storage temperature-20°C~70°C
Working humidity0%~80%
Drop test1.5m fall to concrete
