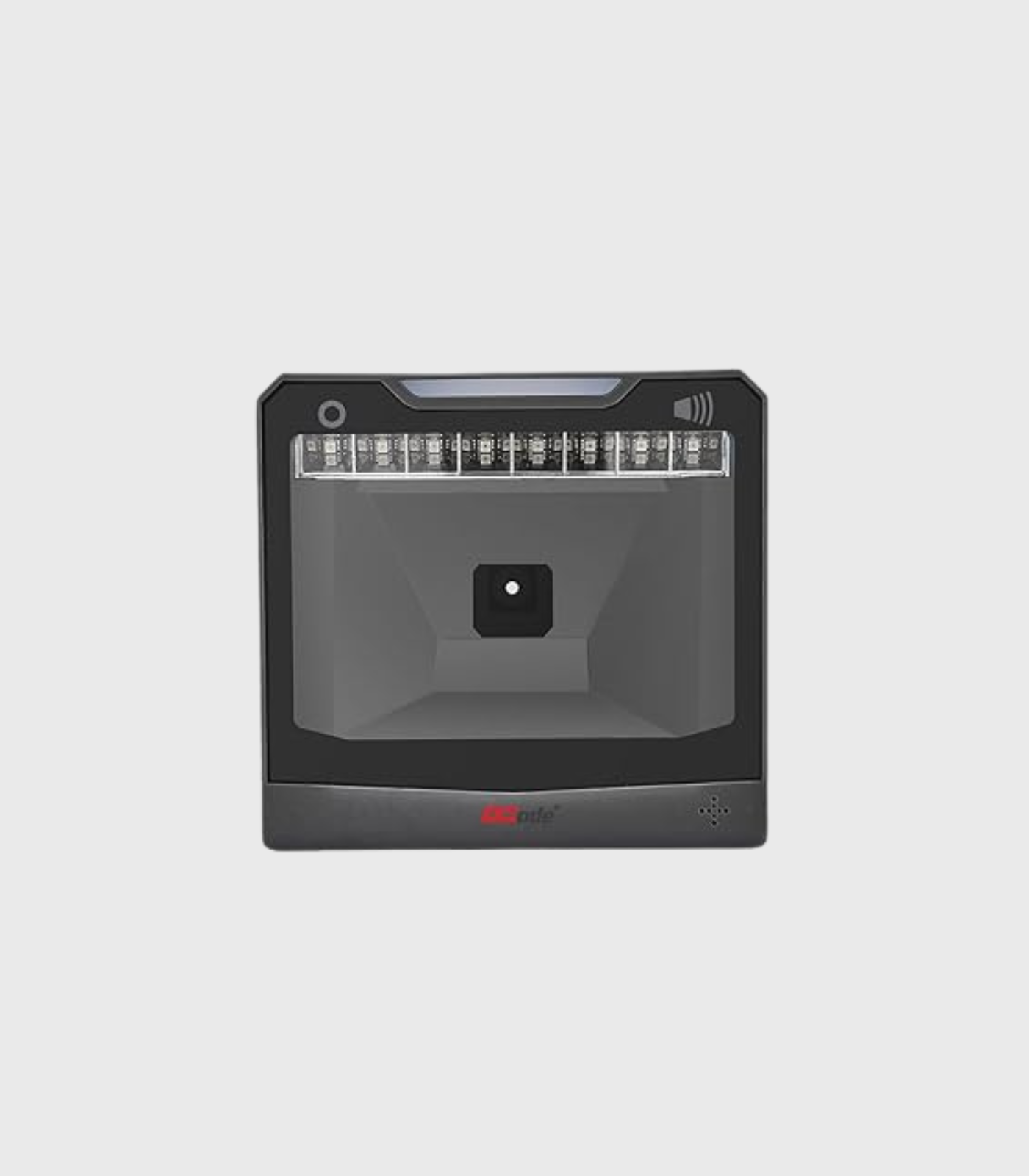

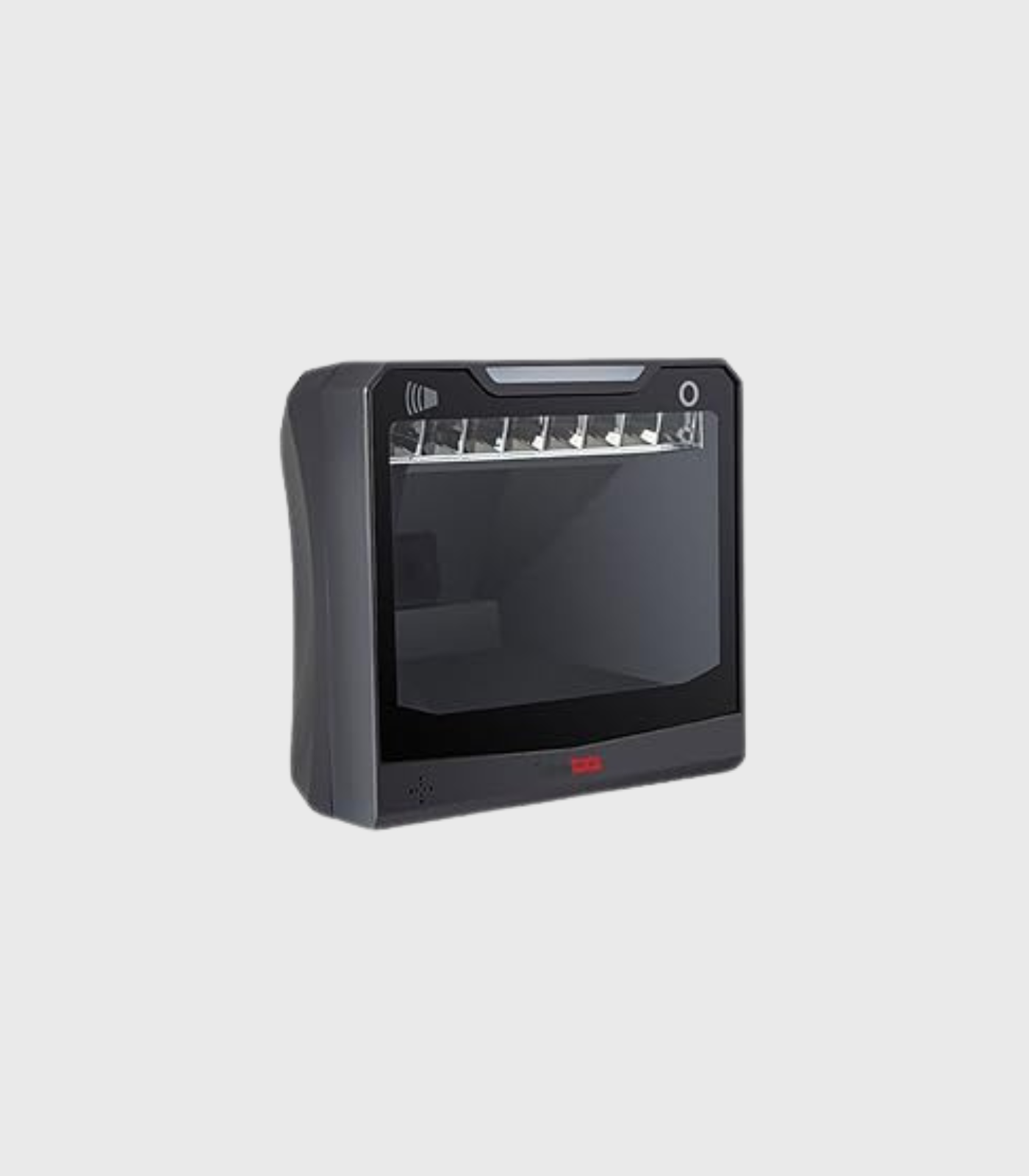

DCode DC5142 Tabletop Barcode Scanner
DCode DC5142 Tabletop Barcode Scanner

DCode DC5142 Tabletop Barcode Scanner (2D/USB)

Warranty :18 Months against any manufacturing defect
Key Features :
  • Model: DCode DC5142 Tabletop Barcode Scanner (2D/USB)
  • Scanner Mount : Tabletop
  • Weight : 348 g
  • Dimension: 151mmx142mmx84mm

₹7,599.00 (Including GST & Shipping)

Wishlist Wishlist Wishlist
Category
Technical Specifications
Optical ResolutionCMOS 1280x1024
Lighting SourceWarm LED
Mils4mil
Scanning Speed2600 per second
Scan AngleRoll 360° / Pitch +65° / Yaw +65°
Field Of View 44 (H) x 34 (V)
CPUARM 32 bit Cortex
Barcode Type Paper, thin film, mobile phone, flat screen, etc
Error Rate <1/2,000,000
InterfaceUSB
Prompt MadeBuzzer, LED
Decoding Capability1D: Codabar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of
5, NEC 2 of 5, Code 93, Straight 2 of 5 Industrial, Straight 2 of 5 IATA
Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8
Decoding Capability EAN/JAN-13, MSI, Gs1 Databar OmniDirectional, Gs1 DataBar Limited
GST DataBar Expanded, China Post (Hongkong 2 of 5), Korea Post 2D:
PDF417, QR Code, Micro PDF417, Austrian Post, Canada Post, Japan Post
MaxiCode, Codablock, Aztec, Dutch Post, DataMatrix, etc
Electric Voltage5V DC
Current Ambient456mA, Standby 220mA, Starting 470mA
Light Immunity0-100,000 Lux
Mechanical Parameters
Dimensions151mm x 142mm x 84mm
weight348g
Environmental Parameters
Working Temperature-0°C ~ 50°C
Storage Temperature-30°C ~ 70°C
Humidity5% to 95% Relative Humidity, Non Condensing
Drop Test2m
Warranty18 Months against any manufacturing defect
