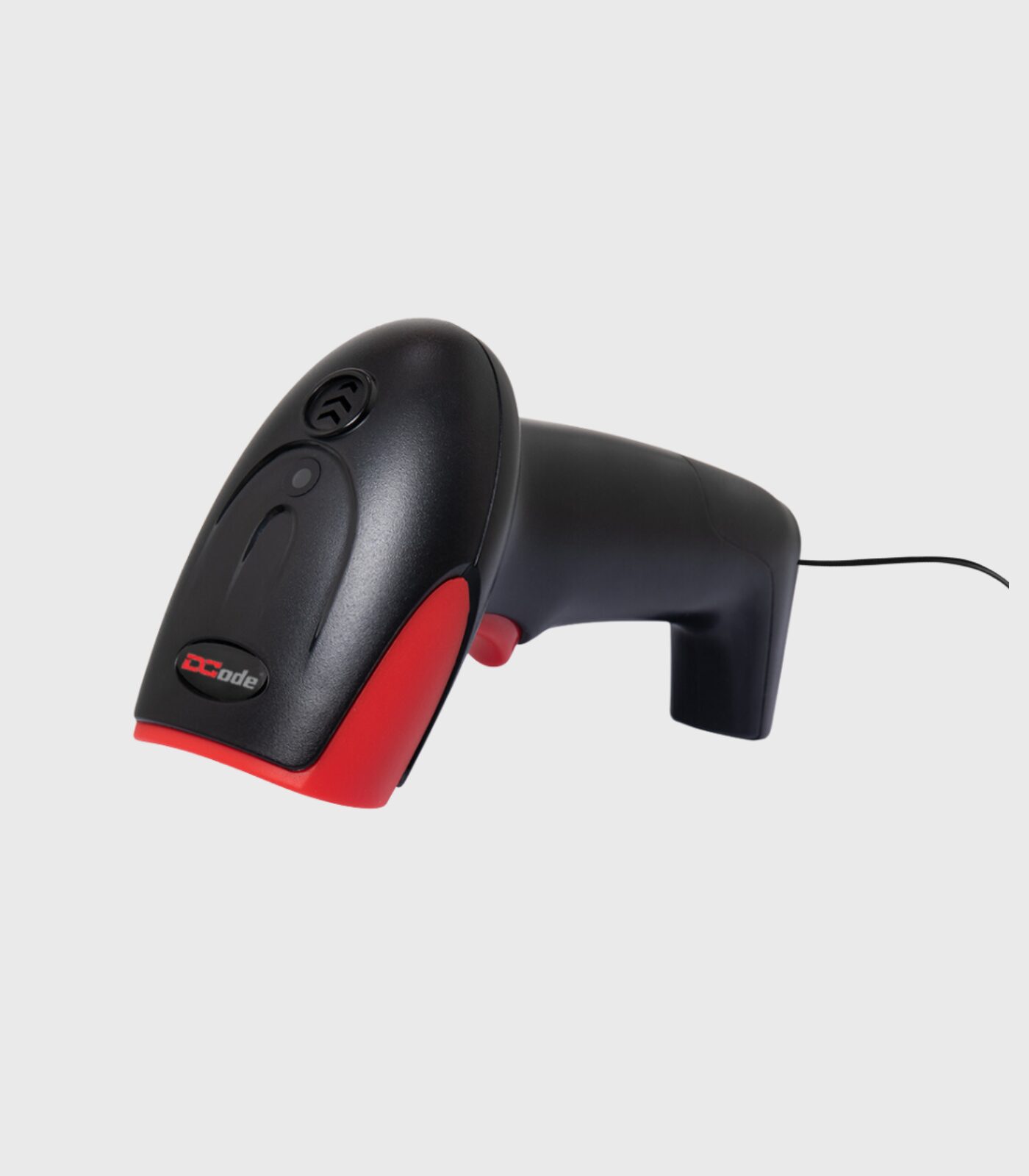

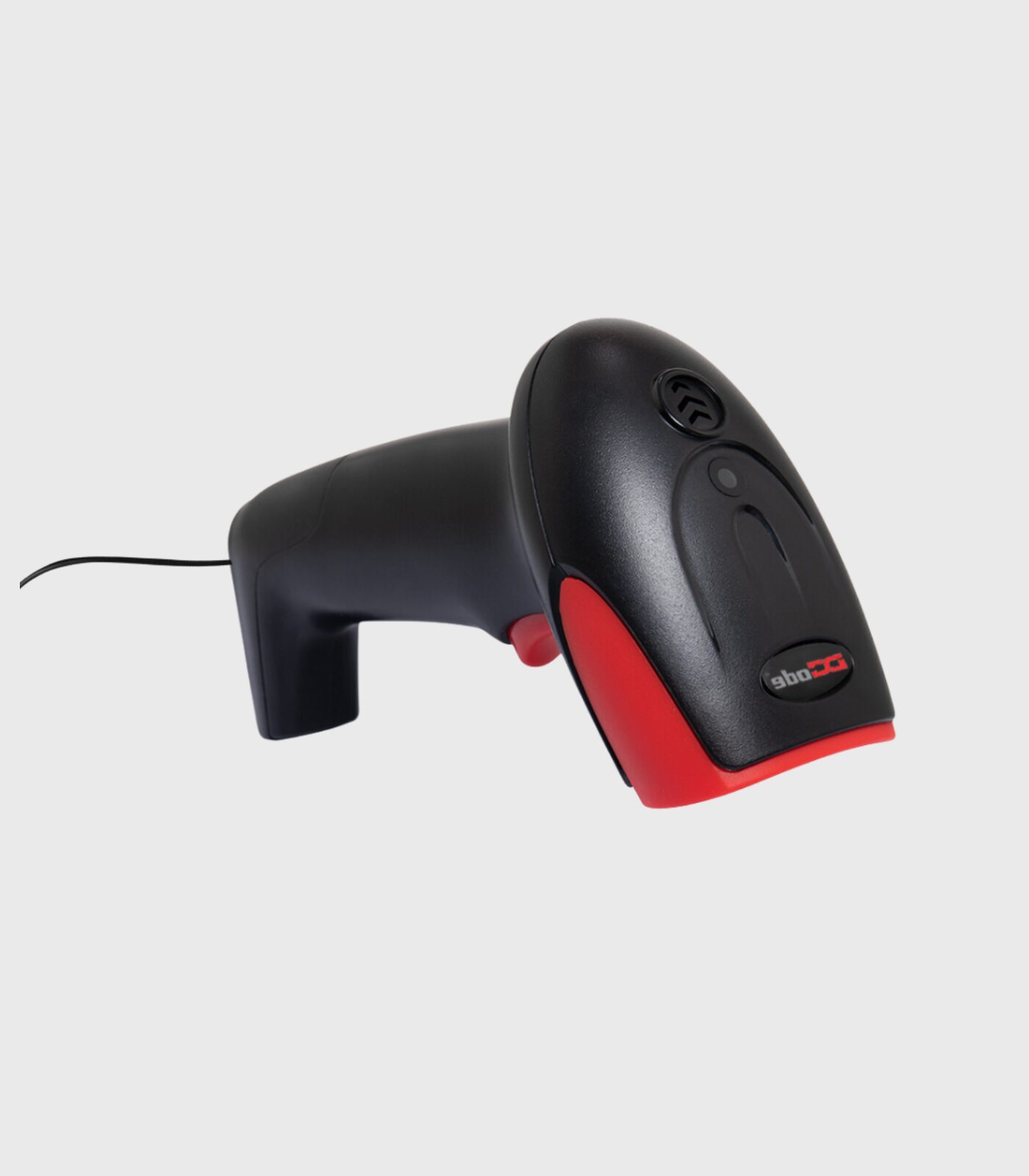

DCode DC7121 2D Wired Barcode Scanner
DCode DC7121 2D Wired Barcode Scanner

DCode DC7122 2D Wireless Barcode Scanner

Warranty :18 Months against any manufacturing defect
Key Features :
  • Model: DCode DC7122 2D Wireless Barcode Scanner
  • Scanner Mount : Handheld
  • Scanning Type: Area Imager
  • Weight : 176 g
  • Dimension: 170mmx92mmx55mm

₹4,200.00 (Including GST & Shipping)

Wishlist Wishlist Wishlist
Category
Technical Specifications
Scan Type Area Imager
Lighting AimerCMOS 640 x 480
Storage100,000 Barcodes
Scanning Speed500 per second
Scan Angle Rotation 30° / Incline +55° / Decline +60°
Resolution 4mil
CPU ARM 32 bit Cortex
Battery2200 mAh Li-ion
Transmission RangeIndoor max 50 meters | Outdoor max 100 meters
InterfaceUSB + Dongle
Prompt MadeBuzzer, LED
Decoding CapabilityUPC-A, UPC-E,Code128, EAN-13, EAN-8,
ISBN, Code 93, UCC/EAN-128, GS1 Code39,
Code 39FullASCII,Codabar,Interleaved 2 of 5,
Databar,MSI,Code11, ISBN,ISSN,China post,etc
2D:QR code,PDF 417,Data Matrix,Aztec,Maxicode etc
Electric Voltage5V DC
Current AmbientWork 86mA, Standby 42mA, Starting 130mA
Light Immunity0-100,000 Lux
Mechanical Parameters
Dimensions 170mm x 92mm x 55mm
weight176g
Environmental Parameters
Working Temperature-0°C ~ 50°C
Storage Temperature-30°C ~ 70°C
Humidity5% to 95% Relative Humidity, Non Condensing
Drop Test2m
Warranty18 Months against any manufacturing defect
