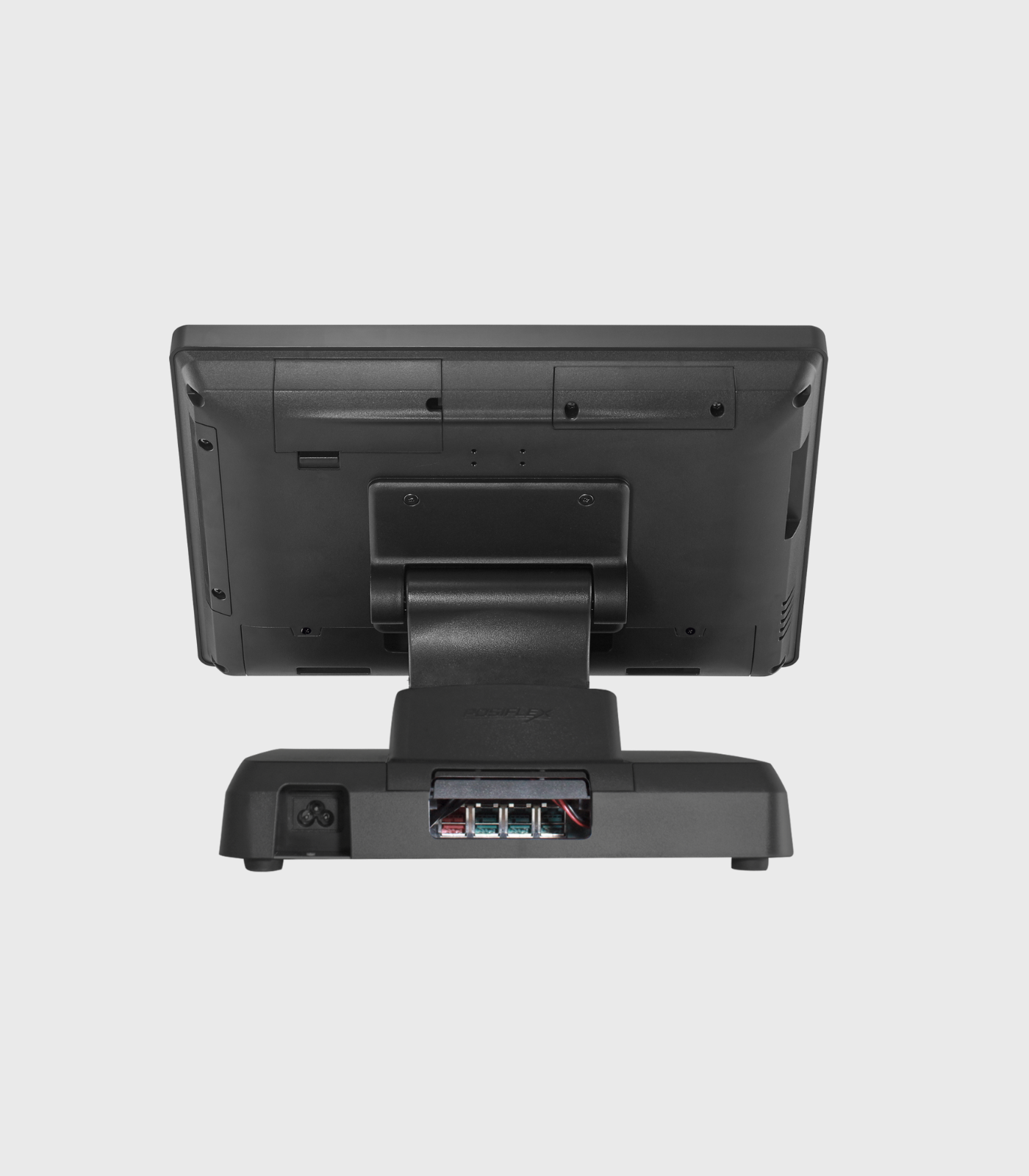

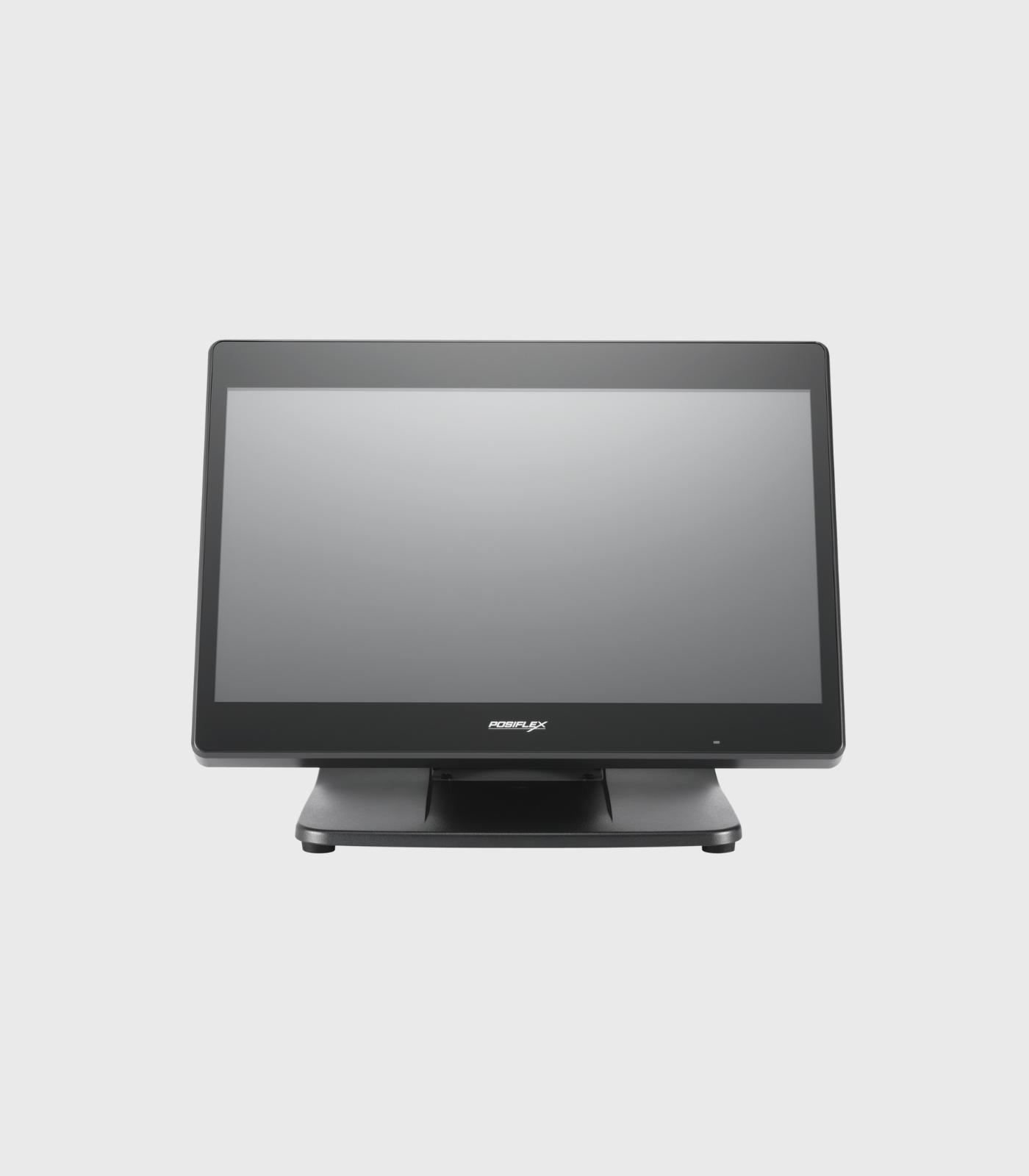

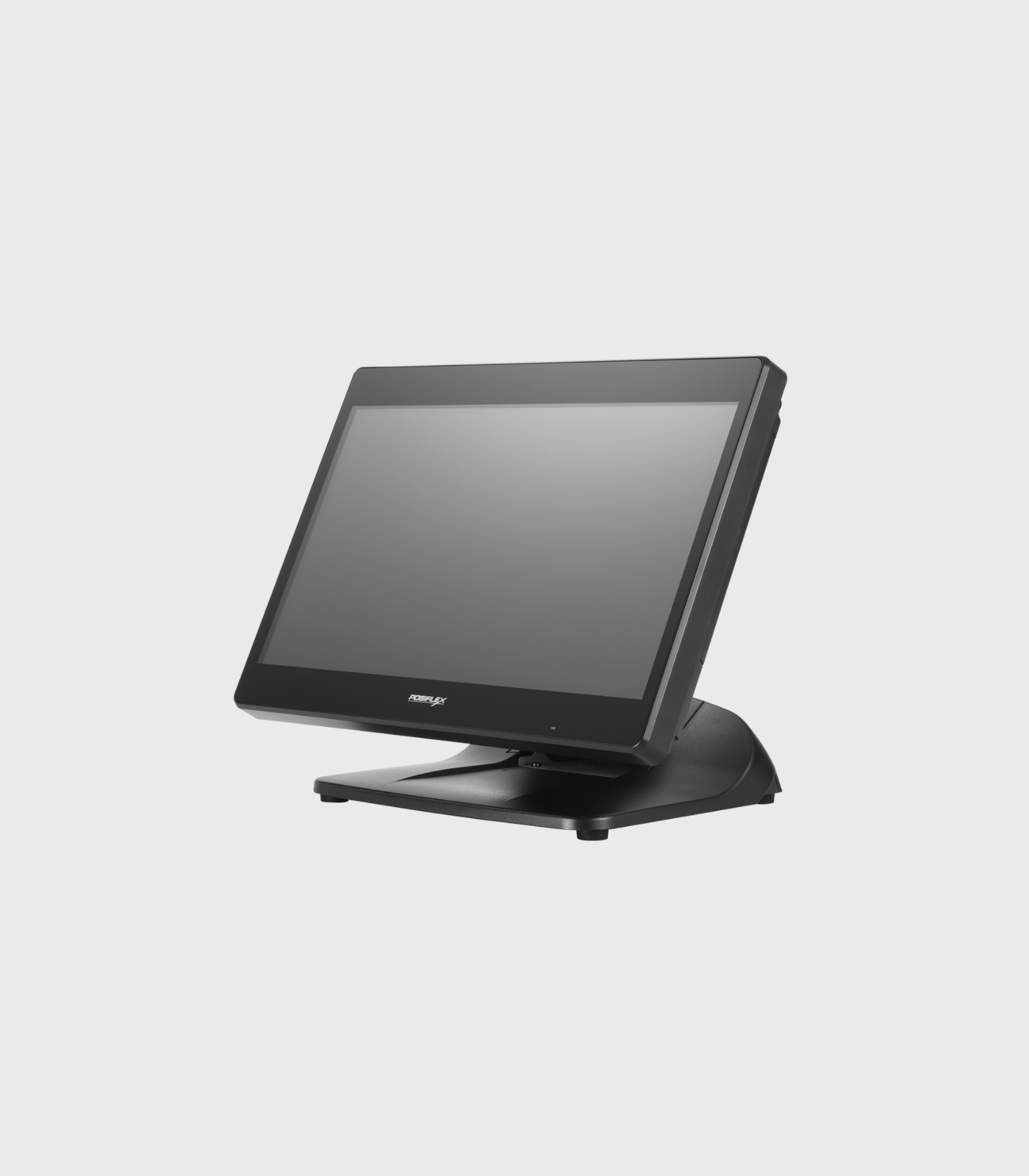

Posiflex PS-3616 G2 POS System

Best Value Fanless POS Terminal

Crafted with functionality and flexibility in mind, PS-3616 Series features a 15.6” wide touch screen, fanless technology, and an adjustable base to scale to meet both retailers’ and consumers’ expectations—all within an affordable, yet attractive and feature-rich terminal.

₹56,000.00 (Including GST & Shipping)

Wishlist Wishlist Wishlist
Category Tags, , , , , , , , , , , , Brand:
SPECIFICATION
ProcessorD Series – Intel Apollo Lake N3350
System MemoryDDR3L SO-DIMM x 1, max. 8GB
Storage DeviceM.2 connector (SATA Signal Only) x 1
Power Supply12V/40W
OS SupportWindows 10 IoT
DISPLAY AND TOUCH
LCD15.6” TFT LCD
Resolution1366 x 768
TouchTrue-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O & Expansion
Serial Port4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports
Parallel Port1, via optional conversion cable through service window
Standard USB Port5, USB 3.0 x 2+ USB 2.0 x 2 (on I/O plate) + USB 2.0 x 1 (on the top)
PoweredUSB PortOptional 24V x 1 + 12V x 3 via GEN8 base
OTG USBN/A
LAN Port10/100/1000 Mb x 1
Display PortVGA x 1, 12V support for Posiflex monitors
CR Port1, control 2 CR via optional Y-cable
PS/2 Port1, via optional conversion cable through service window
AudioBuzzer x 1; Optional internal 2W speaker x 1
Expansion SlotM.2 slot x 1
PHYSICAL DIMENSION
Dimension (W x D x H in mm)372 x 252.7 x 291.4
Weight (N. W. in kg)4.7
ENVIRONMENTAL
Operating Condition0°C – 50°C, 20%RH – 90%RH (Equipped with SSD)
Storage Condition-20°C – 70°C, 10%RH – 90%RH
BUILT-IN OPTIONS
WiFiM.2 WiFi/BT module
ATTACHEMENT OPTIONS
POS MonitorNon-touch TFT USB LCD: 7″/9.7″
Line Display2 x 20 rear-mount VFD customer line display;
2 x 20 rear-mount LCD customer line display;
7″ color LCD graphical line display
AttachmentMSR; iButton; RFID; Fingerprint Sensor; Keypad

   Download Brochure
