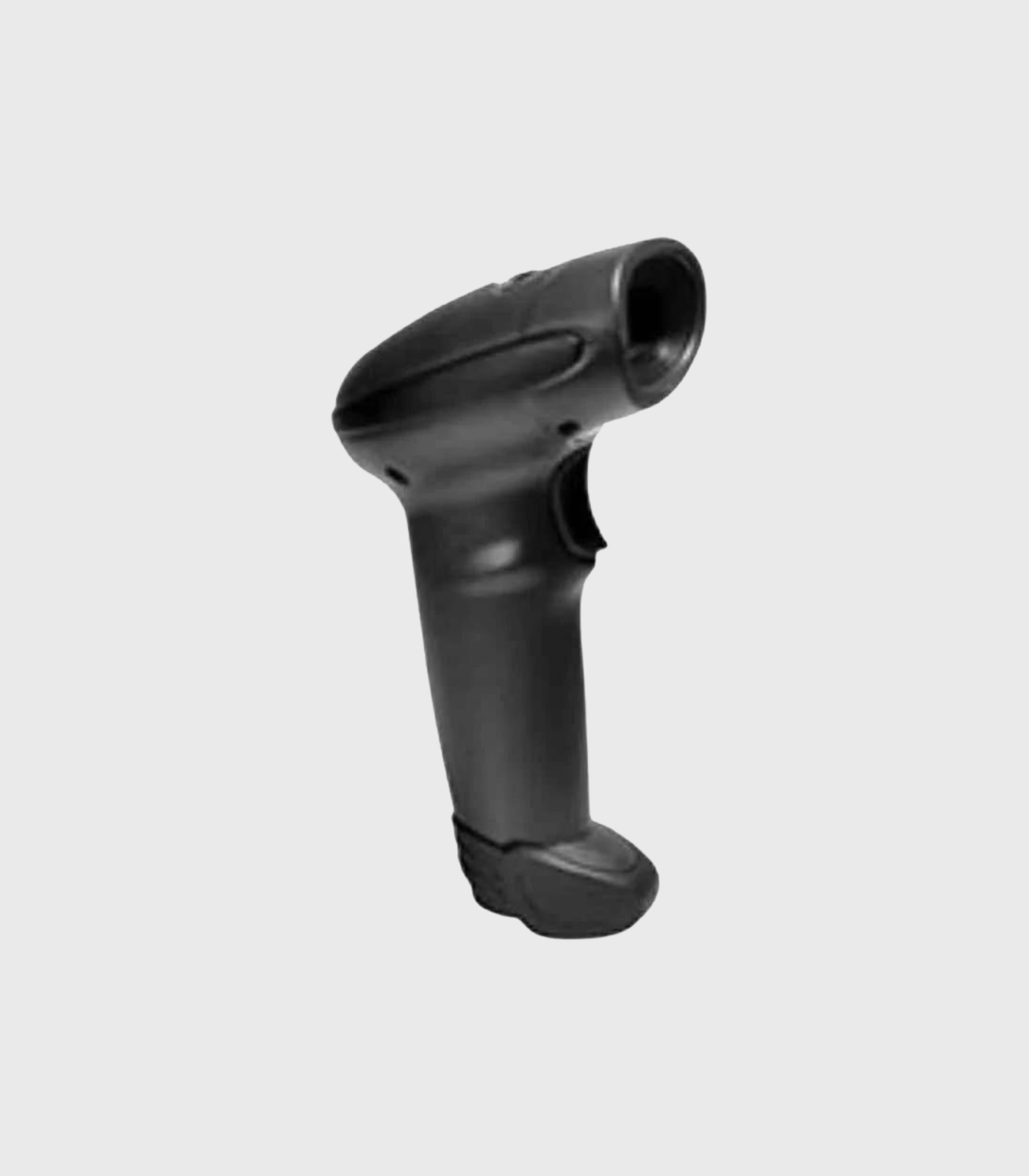

Rugtek CD3200-BT Barcode Scanner (USB + Bluetooth)
Rugtek CD3200-BT Barcode Scanner (USB + Bluetooth)
Rugtek CD3200-BT Barcode Scanner (USB + Bluetooth)
Rugtek CD3200-BT Barcode Scanner (USB + Bluetooth)
Rugtek CD3200-BT Barcode Scanner (USB + Bluetooth)

Rugtek CD3200-BT Barcode Scanner (USB + Bluetooth)

• 640 (H) x 480 (V) pixels resolution
• Green LED indicator, buzzer, and motor vibration alerts
• Operates in both manual (handheld) and automatic (hands-free) modes
• 300 scans per second

₹6,490.00 (Including GST & Shipping)

Wishlist Wishlist Wishlist
Category Tags, , , , , , , , Brand:

Decode the most widely used 2D barcodes seamlessly. Compatible with all POS systems and ideal for retail environments, this Bluetooth device offers easy plug-and-play functionality with no drivers required, ensuring straightforward operation. Designed with ergonomics in mind, it provides a comfortable user experience. Equipped with the latest decoding technology, it delivers fast and efficient scanning performance.

Technical SpecificationsCD-3200BT
Image(Pixels)640 (H)*480 (v)pixels
Light SourceAiming: 625 nm LED; illumination:4000K LED
Depth of Field45° horizontal, 34° vertical
Scan AngleLeft and right:± 55 °, Front and rear:± 55 °, Rotate:360 °
Image SensorCMOS
Print Contrast≥20%
Visual IndicatorGreen LED light, Buzzer, Motor Vibration
Scan Distance20-200mm @ EAN 13mil PCS=100% 5-170mm @ QR 20mil PCS=100%
Power ParameterInput Voltage: 5VDC±5%, Working corrent: 400mA
Dimension / Weight173*66*94(mm), 202g(With mini adapter)
Drop Durability1.6M, IP42
Scan ModeHandhand (Manual) / Handfree (Automatic)
Frame Rate300 scans / seconds
Scan accuracy≥4mil@ Code39
Transmission Range2.4G:100m; Bluetooth HID/BLE/SPP: 40m(in open air)
Work frequency2.400GHz-2.480GHz ISM frequency
Case MaterialABS+PC, TPU
Firmware UpdateComputer online upgrade
Paired Modeone to one, or one to more (Optional)
Battery ParametersBattery Capacity: 2000mAh, Charge Mode:Wire charging, Charge time:5h, Working time:12h (continuous scanning)
Barcode Decode1D: UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),etc. 2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Dotcode, GS1 DataBar stack, etc.
Environmental parametersOperating Temperature:-10°~+ 50° Working Humidity: 5% to 95% relative humidity, non-condensing Storage Temperature:-20°~+60° Electrostatic protection:±8 kV(Direct discharge) Ambient brightness:0~100,000Lux

   Download Brochure
