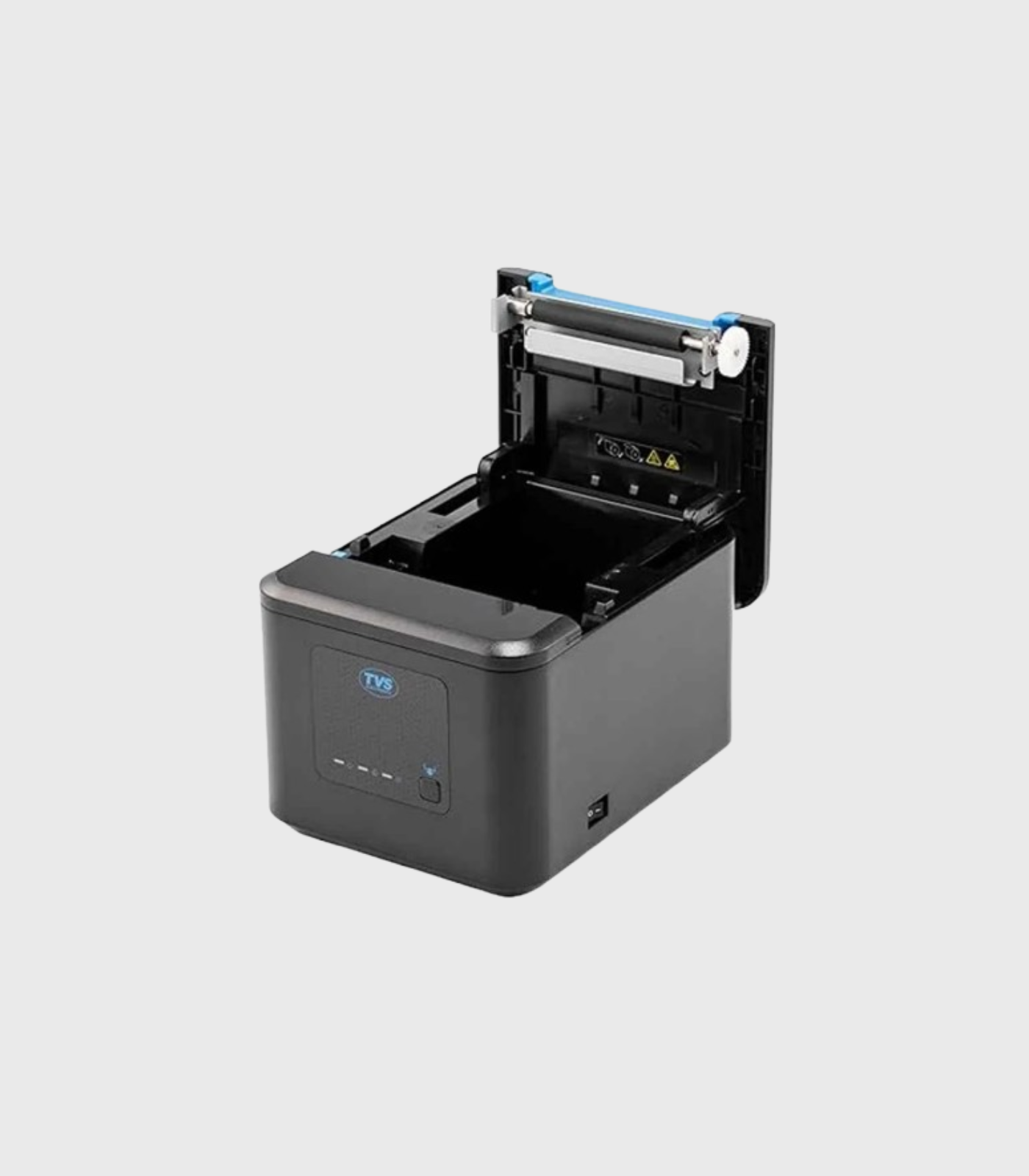

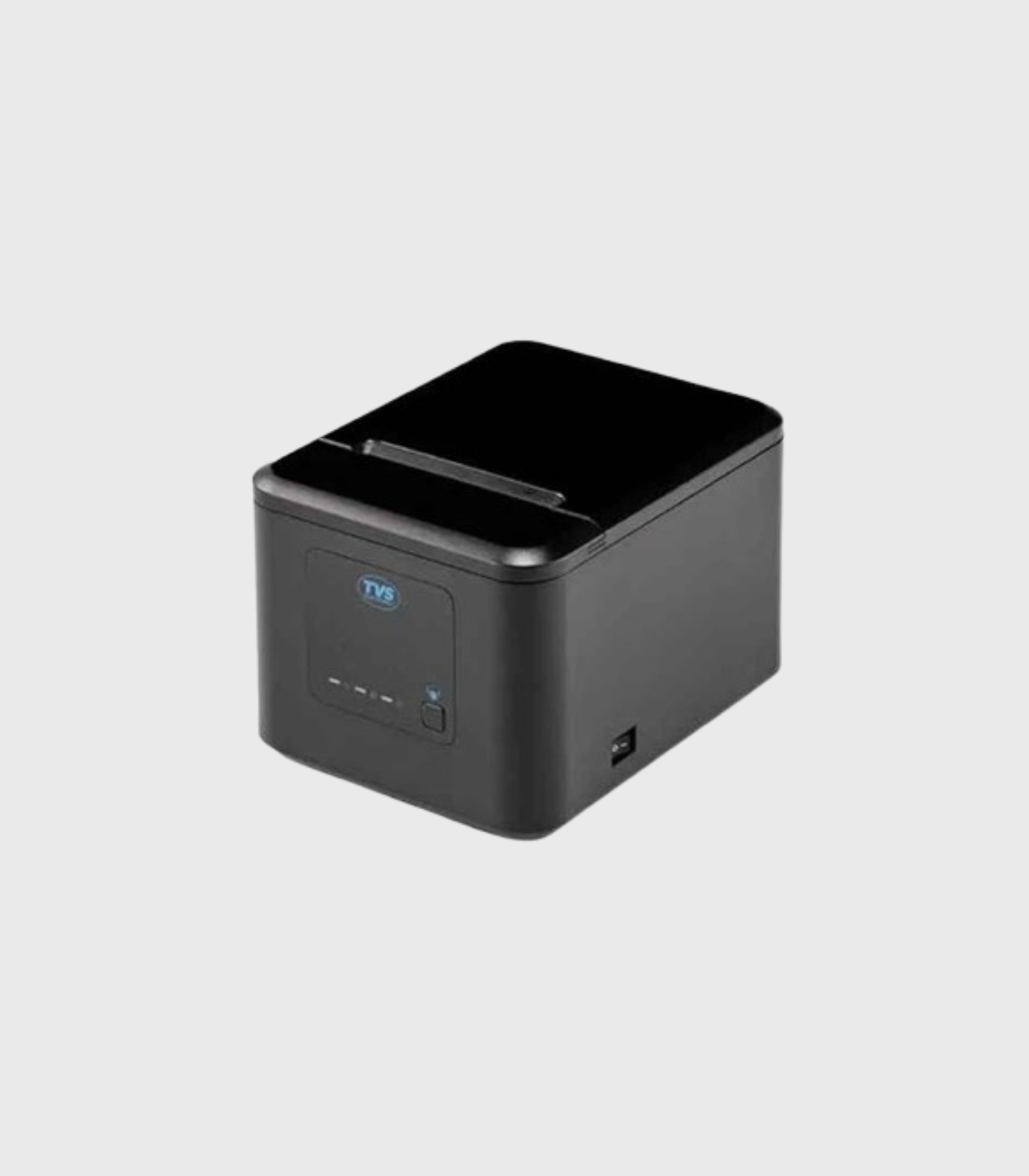

TVS Thermal Printer RP-3230
TVS Thermal Printer RP-3230
TVS Thermal Printer RP-3230

TVS Thermal Printer RP-3230

RP 3230 thermal printer comes with different wired options such as USB, Serial, Ethernet and cashdrawer port which makes it an exemplary choice for Retail and Hospitality segments. Its High-speed printing enhances swift billing and ticketing, thus reducing long queues. Equipped with three at a glance LEDs for visualizing printer status.

ADVANTAGES

Compact design
Luminous logo design
High printing speed
Multiple Communication Interface
Compatible with commands Supports advanced emulations

₹8,260.00 (Including GST & Shipping)

Wishlist Wishlist Wishlist
Category
Specification
Print MethodDirect thermal printing
Resolution203 DPI (8dots/mm)
Print Width72mm / 48mm
Print SpeedMax. 230mm/s
EmulationESC/POS
Page ModeSupport
Paper TypeThermal continuous paper
Paper Width79.5±0.5mm/57.5±0.5mm
Paper ContainerMax. 83mm
Paper FeedUpward feed direction
StandardUSB Type-B, Ethernet, Serial, Cash drawer
OptionalUSB+WiFi+BT
1D barcodeUPC-A, UPC-E, Code 39, Code 93, Code128, EAN8, EAN13, Interleaved2 of 5,Codabar
2D barcodeQR Code,PDF417
Chinese CharacterSimplified/Traditional: (24 x 24 dots)
English CharacterASCII: Font A 12×24, Font B 9×17
Code Page47
GraphicsSupport bitmap printing and bitmap downloading with different density
and user defined (Max. 64K for each bitmap and the total bitmap cannot
exceed 512K)
BuzzerInternal buzzer
kitchen bell(optional)
Sensor (Standard)Paper end, cover opening, cutter jam, TPH over-temperature
Sensor (Optional)Black mark sensor
RAM4 MB
Flash4 MB
Input PowerAC100V-240V, 50/60Hz
Output PowerDC 24V 2A
DriverWindows 7/8/10, Windows Server 2008/2012/2016 Linux,
Javapos,OPOS,MacOS
Utility ToolWindows 7/8/10, Windows Server 2008/2012/2016
TPH Life100 km
Cutter Life1,500,000 times
Operating0~45℃ / 5~95%RH No condensation
Storage-20~70℃ / 15~95%RH No condensation
CertificationBIS
Weight0.916kg
Dimension140x 179 x117(LxWxH（mm）)

   Download Brochure
