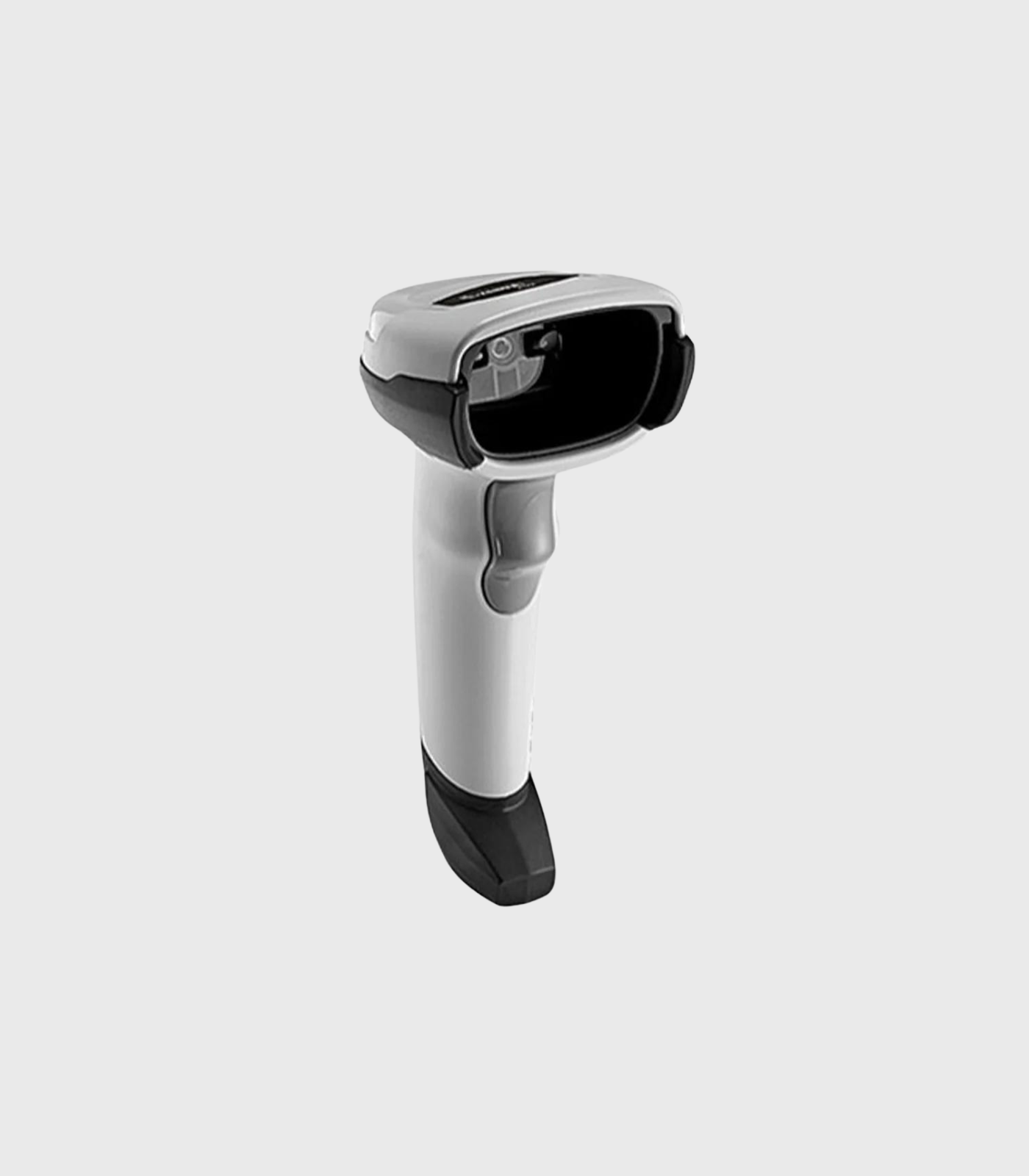

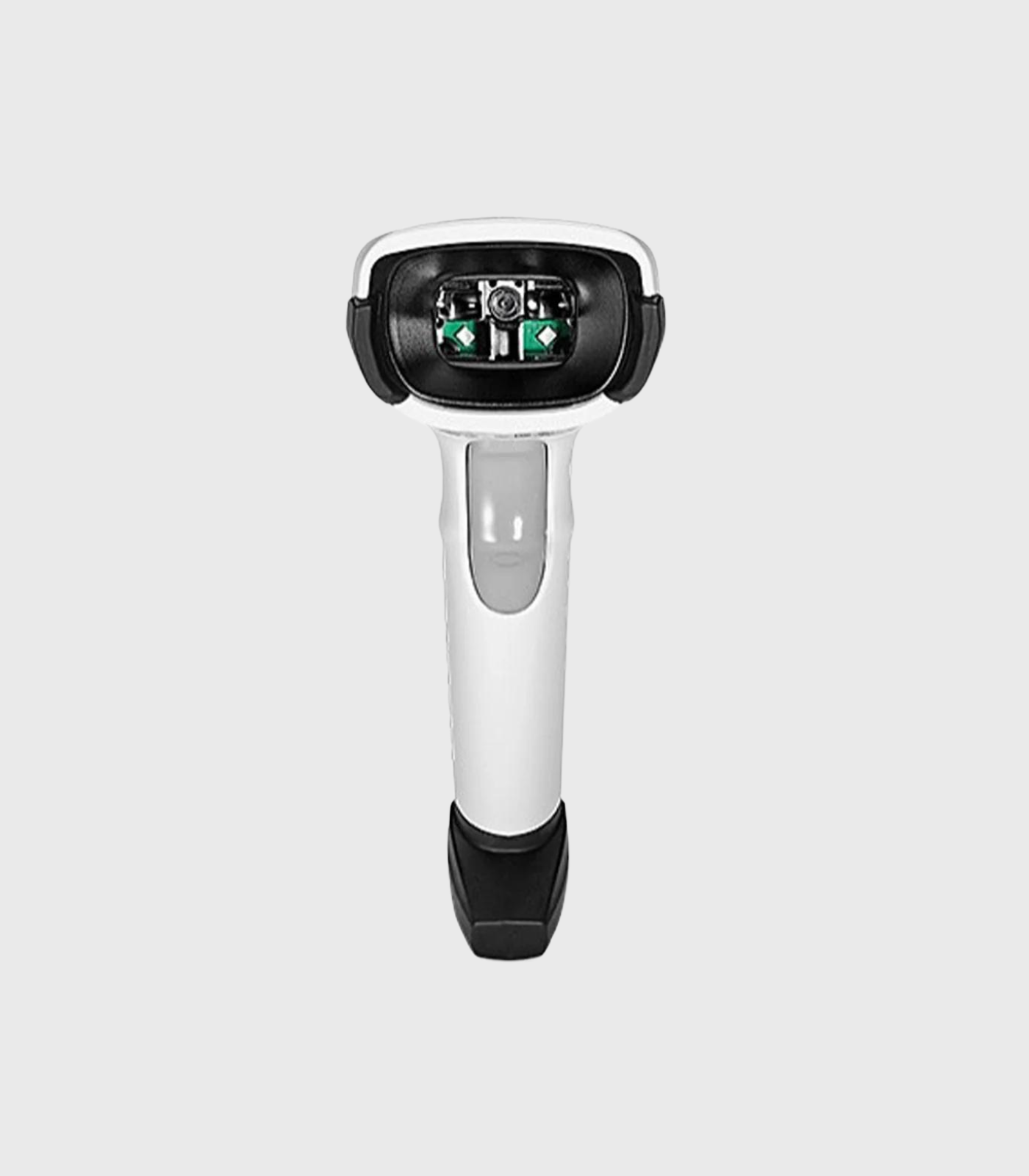

Zebra DS-2208 1D/2D Barcode Scanner (USB)

Warranty : 3 Years Manufacturer’s Warranty
Key Features :
  • Brand: Zebra
  • Model: DS2208 Series
  • Connectivity: Corded
  • Scanner Type: Imager
  • Form Factor: Handheld
  • Scanner Capability: 2D
  • Ruggedness: General Purpose

6,799.00 (Including GST & Shipping)

Wishlist Wishlist Wishlist
Category

2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards. Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store. But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. Your workers get best-in-class first-time, every-time scanning with point-and-shoot simplicity. You get an imager that couldn’t be easier to deploy and manage. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278.* The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.

  • Pre-configured and Ready to Use, Right Out of the Box
  • Auto-host Detect Cables
  • Easy Integration with a Tablet-based POS
  • Deploy Anywhere in the World
  • Easily Customize Settings with 123Scan
  • Backwards Compatible with Zebra LS2208 Series Cables
Technical Specifications
DimensionsCorded DS2208:
6.5 in. H x 2.6 in. W x 3.9 in. D
16.5 cm. H x 6.6 cm. W x 9.9 cm. D
WeightCorded DS2208: 5.7 oz. / 161.6 g
Input Voltage RangeDS2208/DS2278 and Cradle: 4.5 to 5.5 VDC Host
Powered; 4.5 to 5.5 VDC External Power Supply
CurrentCorded DS2208 Operating Current at Nominal
Voltage (5.0V): 250 mA (typical). (Note: Auto-Aim and Illumination on Acquiring Image)
Corded DS2208 Standby Current (idle) at Nominal Voltage (5.0V): 150 mA (typical). (Note: Auto-Aim On)
Presentation Cradle and Micro USB Cable: 500 mA (typical) Standard USB; 1100 mA (typical) BC 1.2 USB
ColourNova White, Twilight Black
Supported Host InterfacesUSB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Keyboard SupportSupports over 90 international keyboards
User IndicatorsDirect Decode Indicator; good decode LEDs; Rear view LEDs; beeper (adjustable tone and volume)
Motion Tolerance (Handheld)Up to 5 in./13 cm. per second for 13 mil UPC
Swipe Speed (Hands-Free)Up to 30.0 in./76.2 cm. per second for 13 mil UPC
Light SourceAiming Pattern: Linear 624nm Amber LED
Imager Field of View32.8° H x 24.8° V Nominal
Image Sensor640 x 480 pixels
Minimum Print Contrast25% minimum reflective difference
Skew/Pitch/Roll Tolerance+/- 65°; +/- 65°; 0-360°
Minimum Element ResolutionCode 39 - 4.0 mil; Code 128 - 4.0 mil; Data Matrix - 6.0 mil; QR Code - 6.7 mil
Operating TemperatureDS2208/DS2278 Imagers: 32.0° to 122.0° F/0.0° to 50.0° C
Storage Temperature-40.0° to 158.0° F/-40.0° to 70.0° C
Humidity5% to 95% RH, non-condensing
Drop SpecificationDesigned to withstand multiple drops at 5.0 ft./1.5 m to concrete
Tumble SpecificationDesigned to withstand 250 tumbles in 1.5 ft./.5 m tumbler1
